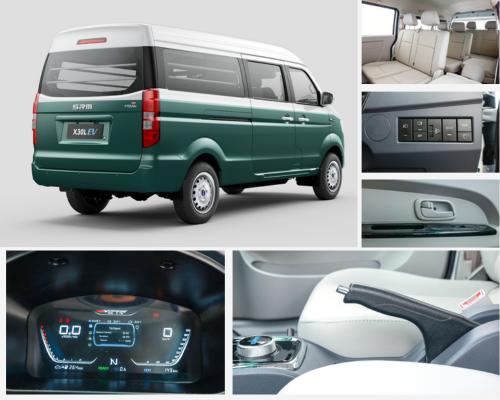

SRM X30L EV 11-SEATER-MAGIC
Power & Performance
Gross Vehicle Weight (GVW): 2,510 kg
Max Speed: 100 km/h
Max Gradability(%): ≥25
Range (NEDC): 220 km
Comfort & Convenience
Air Conditioning Form: Electric air conditioning
Front Air Conditioning: Available
Interior: Spacious interior designed for comfort
Suspension: Advanced suspension system for a smooth and stable ride
Safety
Door Unclosed Warning: Yes
Unplug Key Alarm Device: Yes
Reversing Radar: Yes
All Door Central Lock System: Yes
Unplug Key Alarm Device: Yes
Reversing Radar: Yes
All Door Central Lock System: Yes
Battery
Battery Type: Lithium Iron Phosphate (CATL)
Battery Capacity: 60.1 kWh / 86.1 kWh
Range (WLTP): 200 km
Charging Time (AC): 4.5 hours
Charging Time (DC): 30 minutes (for 20%–80% charge)
Technical Specifications
- Motor Type: Electric
- Battery Type: Lithium Iron Phosphate (CATL)
- Max Power (kW): 50
- Max Torque (Nm): 220
- Max Speed (Kmph): 100
- Ground Clearance (mm): 180
- Brake System: Front Disc, Rear Drum
- Seating Capacity: 11
- Min. Turning Radius (m): 5.5
- Steering: Electronic Power Steering (EPS)
- Gradability (%): ≥25
- Drive: Rear Wheel Drive
- Battery Capacity (kWh): 32.14
- Charging Time AC: 4.5 hours
- Charging Time DC: 30 minutes
- * Based on charging from 20% – 80%
- Range -NEDC (Km): 220
- Range -WLTP (Km): 200
- Charging Type: GB/T
- Length X Width X Height (mm): 4,495 X 1,680 X 1,990
- Wheelbase (mm): 2,925
- Tyre Model: 175/70 R14 (Steel Wheel)
- Gross Vehicle Weight (Kg): 2,510
- Curb Weight (Kg): 1,610
- Load Space (m3): 5.2
