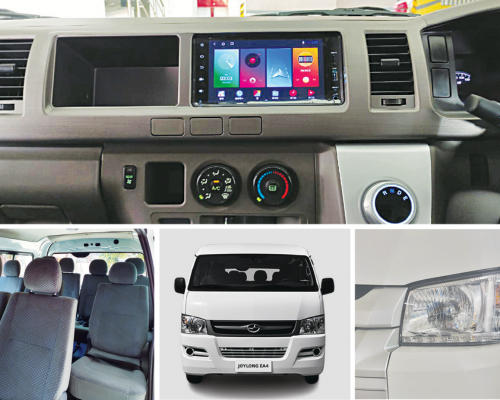

JOYLONG EA4
Power & Performance
GVW: 3,450 kg
Max Speed: 100 km/h
Max Gradeability(%): ≥25
Range (NEDC): 300/400 km
Comfort & Convenience
Air Conditioning Form: Electric air conditioning
Front Air Conditioning: Available
Interior: Spacious interior designed for comfort
Suspension: Advanced suspension system for a smooth ride
Front Air Conditioning: Available
Interior: Spacious interior designed for comfort
Suspension: Advanced suspension system for a smooth ride
Safety
Door Unclosed Warning: Yes
Unplug Key Alarm Device: Yes
Reversing Radar: Yes
All Door Central Lock System: Yes
Unplug Key Alarm Device: Yes
Reversing Radar: Yes
All Door Central Lock System: Yes
Safety
Battery Type: Lithium Iron Phosphate
Battery Capacity: 60.1 kWh / 86.1 kWh
Range (NEDC): 300/400 km
Charging Time (AC): 9/13 hours
Charging Time (DC): 40 min/1 hour (20%–80% charge)
Technical Specifications
- Battery Type: Lithium Iron Phosphate
- Max Power (kW): 100/120
- Max Torque (Nm): 320/382
- Max Speed (kmph): 100
- Ground Clearance (mm): 185
- Brake System: Front Disc, Rear Drum
- Min. Turning Radius (m): 7.75
- Steering: Electric Hydro Power Steering (EHPS)
- Gradability (%): ≥25
- Drive: Rear Wheel Drive
- Gross Vehicle Weight (kg): 3450
- Curb Weight (kg): 2400
- Payload (kg): 1050
- Length X Width X Height (mm): 4840 x 1880 x 2080
- Wheelbase (mm): 2570
- Tyre Model: 215/75R16LT
- Battery Capacity (kWh): 60.1/86.1
- Charging Time AC: 9/13 hours
- Charging Time DC: 40 min/1 hour
- * Based on charging from 20% – 80%
- Range – NEDC (km): 300/400
- Charging Type: GB/T
